Sale!
Categories: Lithium Ion 48-51.2V Battery
Apex 5.22kwh Low Voltage Lithium Ion Battery
Original price was: ₨ 230,000.₨ 225,000Current price is: ₨ 225,000.
Features:
1.Tier1
Eve Great Power
2.8000
Ultra Long Cycles
3.APP
Intelligently Controls
4.1C Discharge
Support high-power loads
5.Explosion
Proof Designe liminates Hazards
6.Compatible
With All Kinds Of Mainstream Inverters
Attachments
This battery is designed for 48 V solar energy storage systems and is commonly paired with hybrid solar inverters (3 kW–6 kW). It uses LiFePO₄ cells, which are safer and last longer than traditional lithium-ion batteries.
Battery Configuration
| Specification | Details |
|---|---|
| Battery Chemistry | Lithium Iron Phosphate (LiFePO₄) |
| Cell Configuration | 16 cells in series (16S) |
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 102 Ah |
| Total Energy | 5.22 kWh |
| Usable Energy | ≈4.2–4.7 kWh (80–90 % DoD) |
| System Voltage | 48 V solar systems |
Energy calculation
51.2V×102Ah≈5220Wh=5.22kWh51.2V \times 102Ah ≈ 5220Wh = 5.22kWh
5.22kwh Low Voltage
APEX 5220 IP20

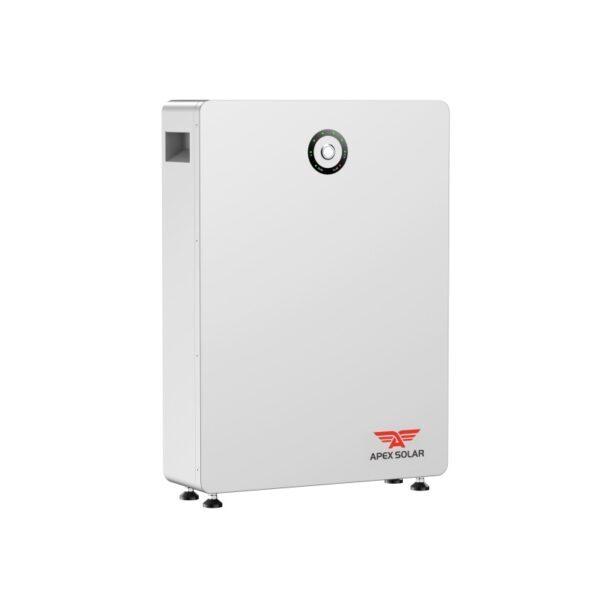

The Apex 5.22 kWh battery is a 48 V-class LiFePO₄ solar storage battery designed for hybrid solar systems and backup power. It is commonly used with 5 kW–8 kW hybrid inverters for homes.
Attachments
There are no reviews yet.
