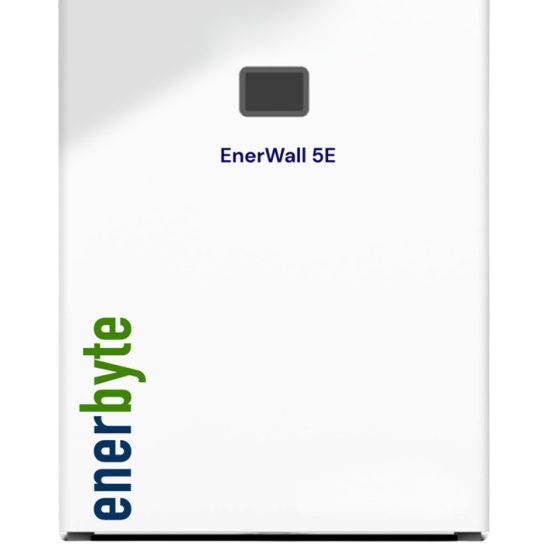

EnerWall E Series – 5.12kWh Lithium Battery

• Model: 51.2V 100-EW E5
• Battery Type: Lithium Iron Phosphate (LiFePO₄)
• Nominal Voltage: 51.2V
• Battery Capacity: 100Ah
• Energy Capacity: 5.12kWh
• Cycle Life: 6,000 cycles at 90% DOD
• Operating Voltage: 46.2V–56.5V
• Communication: CAN / RS485
• LCD Display: Yes
• Wi-Fi Monitoring: Yes
• Battery Expansion: Up to 16 units
• Recommended Charging/Discharging Current: 100A
• Maximum Continuous Charge/Discharge Current: 100A
• Peak Discharge Current: 150A for 3 seconds
• Conversion Efficiency: 99%
• Battery Management System (BMS): Intelligent safety protection
• Safety Protections: Overcurrent, overvoltage, undervoltage, short circuit, and overtemperature protection
• Installation: Wall-mounted design
• Protection Rating: IP20 (indoor use)
• Inverter Compatibility: Compatible with supported hybrid and off-grid inverters

Key Features:

• Premium space-saving wall-mounted design
• Smart display interface
• Wi-Fi-enabled remote monitoring
• Long cycle life
• Intelligent BMS protection
• Scalable battery capacity
• High-efficiency energy storage

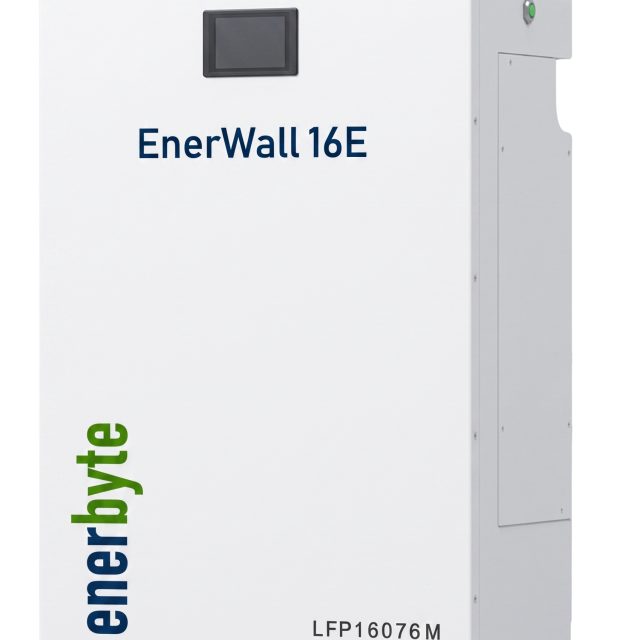

EnerWall E Series – 16kWh Lithium Battery

• Model: LFP-EW 16KWh
• Battery Type: Lithium Iron Phosphate (LiFePO₄)
• Nominal Voltage: 51.2V
• Nominal Capacity: 314Ah
• Nominal Energy: 16.077kWh (16kWh)
• Usable Energy: 14.95kWh
• Cycle Life: 8,000 cycles at 80% DOD
• Extended Cycle Life: 11,000 cycles at 50% DOD
• Operating Voltage: 48–56V
• Recommended Charging/Discharging Current: 100A
• Maximum Continuous Charge/Discharge Current: 150A
• Peak Charge/Discharge Current: 200A for 3 seconds
• Conversion Efficiency: 99% at 25°C and 0.5C
• Communication Interfaces: CAN, RS485, RS232, and optional LAN
• LCD Display: Available
• Wi-Fi Monitoring: Available/optional
• Bluetooth: Optional
• Battery Expansion: Supports up to 16 units
• Safety Features: Overcurrent, overvoltage, undervoltage, short-circuit, and overtemperature protection
• Fire Safety: Single-pack aerosol fire-extinguishing device
• Heating Function: Available
• Charging Temperature: 0°C to 55°C
• Discharging Temperature: -10°C to 55°C
• Cooling Method: Natural convection
• Installation: Floor-mounted or wall-mounted
• Protection Rating: IP20 (indoor use)
• Maximum Operating Altitude: 3,000 metres
• Dimensions (L × W × D): 450 × 752 × 235mm
• Weight: 115kg
• Certifications: UN38.3, CE, and IEC 62619 (cell level)

Key Features:

• Flexible Expansion –Up to 50 units in parallel, 10.24kWh — 512kWh capacity
• IP65 Protection – Fearless of outdoor installation, strong environmental adaptability
• All-round Safety – Short-circuit lockout, surge-resistant, safe and reliable
• Battery Equalization – Cell-level battery passive balancing, prevents SOC jumps and extends battery life
• Easy Installation – Support wall-mounted, floor-mounted installations, high space utilization

Key Features:

• Flexible Expansion – Up to 50 units in parallel, 5.12kWh — 256kWh capacity
• IP66 & C5-M Protection – Fearless of outdoor installation, strong environmental adaptability
• Ultra Safe – Intelligent fire extinguishing system, detects and extinguishes fire in 5s
• Automatic Self-heating – -20C to 55C operating temperature (optional)
• Easy Installation – Support wall-mounted, floor-mounted installations, high space utilization

Warranty: 7 Years
