Sale!
Categories: Solar Hybrid Inverters, Solar Inverters
Nitrox 8KW 3P Hybrid Inverter
Original price was: ₨ 535,000.₨ 530,000Current price is: ₨ 530,000.
Key Features:Â
- Ultra-High PV Input: Up to 16,000W with dual MPPT (150–425VDC)
- 210A Max Charge/Discharge: Fast, powerful battery performance
- Parallel Ready: Scalable to 16 units for large installations
- Dual MPPT Trackers: Independent strings with 34A+34A protection
- Robust Output: 10KW continuous, 11KVA peak for surge loads
- Touch LCD Panel: Colorful, outdoor-rated IP65 interface
- AC Coupling: Retrofit to existing grid-tied solar systems
- Smart Battery Scheduling: 6 programmable periods for charging/discharging
- Generator Integration: Compatible with diesel generators for backup
- High Efficiency: 97.6% inverter & >99% MPPT, <0.5% DC ripple
- Rugged Conditions Support: Operates at -40°C to +60°C and up to 2000m altitude
- Advanced Protections: RCD, surge, thermal, reverse polarity, etc.
- Smart Monitoring: RS485/RS232/CAN + optional WIFI, Bluetooth, 4G, LAN
- Silent & Efficient: <30 dB noise with efficient thermal management
- 5-Year Warranty: International standard compliance (IEC, EMC)

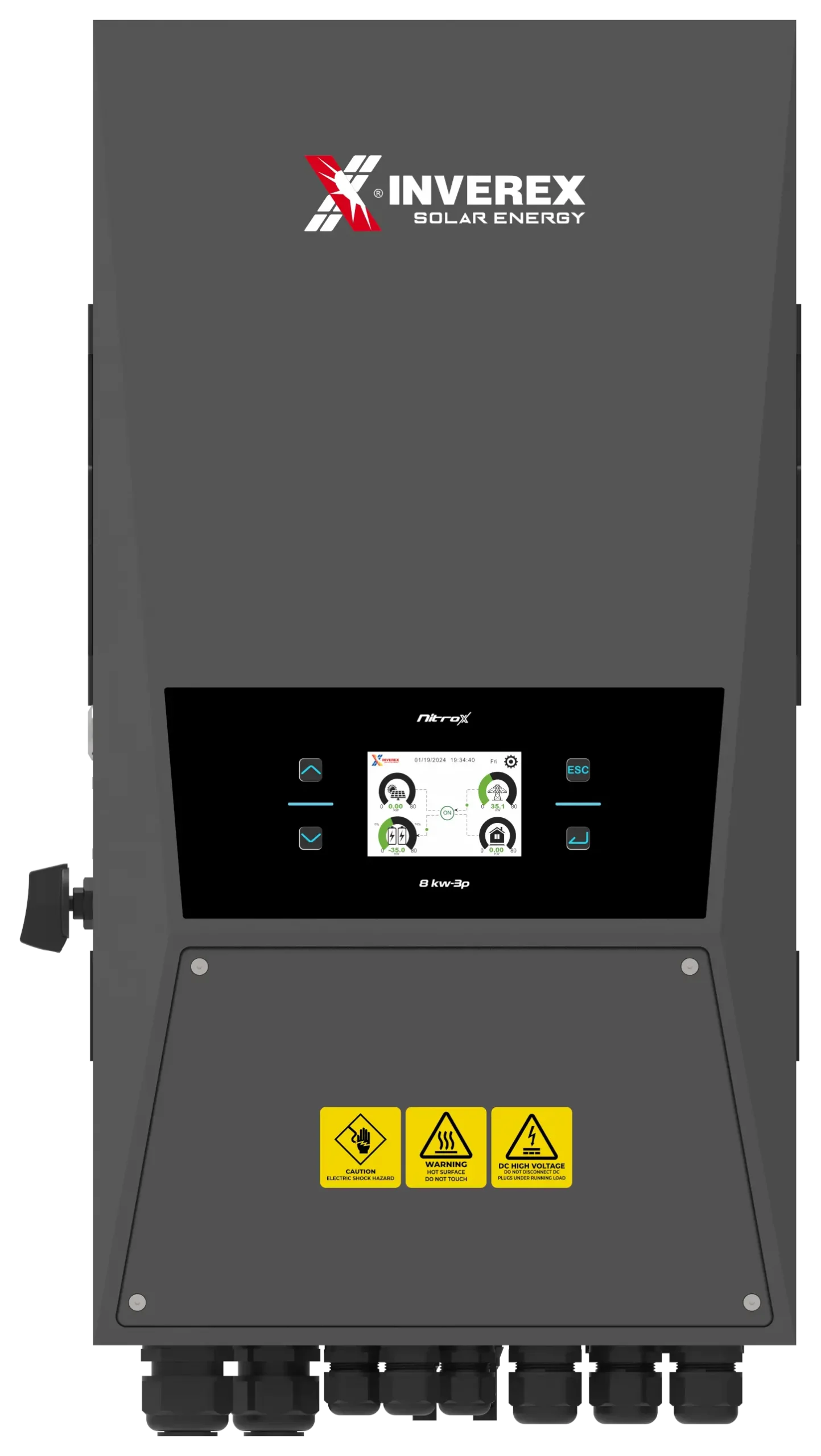

The Inverex Nitrox Hybrid 8kW 3P Inverter is a powerful solar energy solution designed for residential, commercial, and institutional applications in Pakistan. With three-phase output, hybrid operation, and smart energy management, this inverter efficiently handles solar, battery, and grid sources to deliver uninterrupted, intelligent power.
True 3-Phase Unbalanced Output:Â Each phase supports up to 50% of rated power
12.8KW PV Input: Dual MPPT (200–650VDC) with short-circuit protection
190A Max Charge/Discharge:Â Works with lead-acid and lithium-ion batteries
Dual MPPTs:Â Independent tracking (2/1+1 config)
Parallel Ready:Â Up to 10 units on-grid/off-grid
Touchscreen Display:Â Bright, intuitive interface with IP65 protection
AC Coupling:Â Hybrid-ready for retrofit applications
Battery Scheduling:Â 6 programmable time slots for optimization
Diesel Generator Support:Â Extend runtime with DG input
97.6% Peak Efficiency:Â Plus <0.5% DC ripple, >99% MPPT accuracy
Extreme Conditions Ready: Operates in -40°C to +60°C, 3000m altitude
Full Protection Suite:Â RCD, thermal, surge, islanding, polarity, overcurrent
Smart Monitoring:Â RS485/RS232/CAN + optional WiFi/4G/LAN
5-Year Warranty:Â Certified with global safety standards
