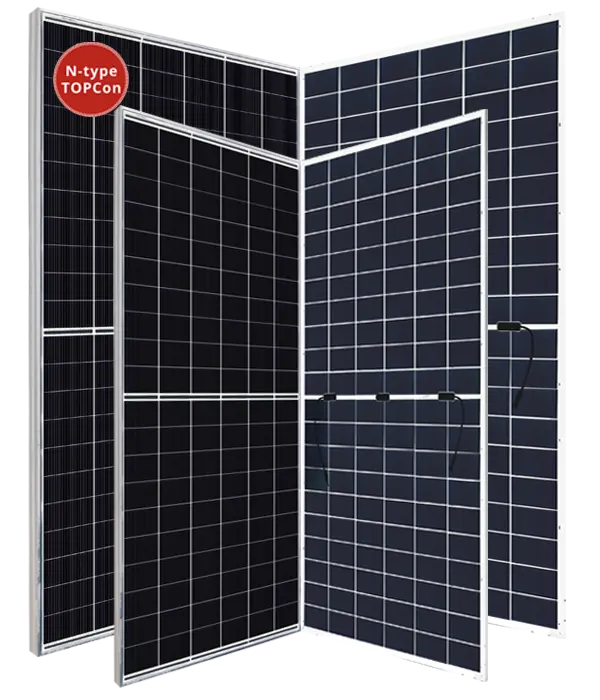

Canadian Solar 710W N Type Bifacial Topcon
Original price was: ₨ 33,000.₨ 32,660Current price is: ₨ 32,660.
MORE POWER:
- Module power up to 715 W
Module efficiency up to 23.0 % 715 W
Up to 85% Power Bifaciality,
more power from the back side - Excellent anti-LeTID & anti-PID performance.
Low power degradation, high energy yield - Lower temperature coefficient (Pmax): -0.29%/°C,
increases energy yield in hot climate - Lower LCOE & system cost
MORE RELIABLE
- Minimizes micro-crack impacts
- Heavy snow load up to 5400 Pa,
wind load up to 2400 Pa*
Product Warranty: 12 Years
Performance Warranty: 30 Years Linear
The Canadian Solar CS7N-710TB-AG is a 710 Wp bifacial glass-glass module using N-type TOPCon cells, offering a high module efficiency of ≈22.9% and a typical bifaciality of ~80% (up to ~85% in ideal conditions). The 132-cell panel measures 2384 × 1303 × 33 mm, weighs 37.8 kg, features an IP68 junction box and MC4-EVO2 / T6 compatible connectors (cable 4.0 mm², ~410/250 mm), is rated for 5,400 Pa snow / 2,400 Pa wind loads, and is covered by an enhanced product warranty plus a 30-year linear power warranty (≤1% first-year loss, ≤0.4% p.a. thereafter).
Technical data — Canadian Solar CS7N-710TB-AG
• Rated power (Pmax): 710 Wp.
• Cell type / count: N-type TOPCon — 132 cells (2 × 66).
• Module design: Bifacial, Glass / Glass (2.0 mm + 2.0 mm).
• Module efficiency: ≈22.9%.
• Dimensions: 2384 × 1303 × 33 mm.
• Weight: 37.8 kg.
• STC electrical (710 W bin): Vmp 40.4 V | Imp 17.59 A | Voc 48.3 V | Isc 18.59 A.
• Power tolerance: 0 ~ +10 W.
• Temp. coefficient (Pmax): −0.29 % / °C.
• Mechanical / system limits: Snow 5,400 Pa (front) | Wind 2,400 Pa (back); Max. system voltage 1500 V DC; Max. series fuse 35 A.
• Cell type / count: N-type TOPCon — 132 cells (2 × 66).
• Module design: Bifacial, Glass / Glass (2.0 mm + 2.0 mm).
• Module efficiency: ≈22.9%.
• Dimensions: 2384 × 1303 × 33 mm.
• Weight: 37.8 kg.
• STC electrical (710 W bin): Vmp 40.4 V | Imp 17.59 A | Voc 48.3 V | Isc 18.59 A.
• Power tolerance: 0 ~ +10 W.
• Temp. coefficient (Pmax): −0.29 % / °C.
• Mechanical / system limits: Snow 5,400 Pa (front) | Wind 2,400 Pa (back); Max. system voltage 1500 V DC; Max. series fuse 35 A.
The Canadian solar 710 W N Type bifacial topcon refers to a high-efficiency solar panel with a 710-watt power output, using N-Type TOPCon cell technology and a bifacial design to capture sunlight from both sides. This panel is suitable for large-scale industrial, commercial, and residential projects, offering up to 30% or more bifacial gain and robust durability.
